Schneider Electric LC1F150 Contactor Safety Relay
VS

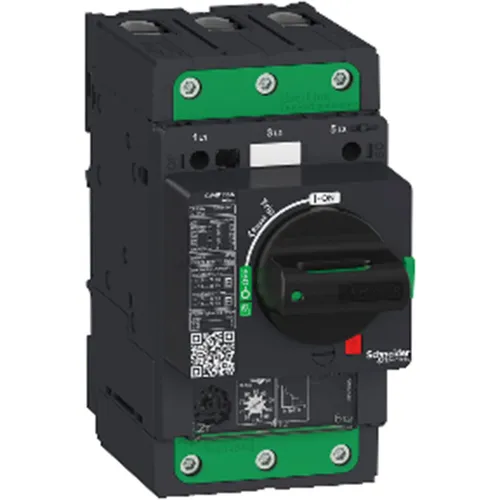

Schneider Electric GV4P Series Motor Protection Circuit Breaker
Feature Comparison
Features
Features
| Connection method | Screw | - |
|---|---|---|
| Number of poles | 3 | 3P |
| Housing colour | Grey | Grey |
| Minimum conductor cross section (solid) | 0.2 mm² | - |
| Maximum conductor cross section (solid) | 2.5 mm² | - |
| Minimum conductor cross section (flexible) | 0.2 mm² | - |
| Maximum conductor cross section (flexible) | 4 mm² | - |
| Rated insulation voltage | 1000 V | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV | 8 kV |
| International Protection (IP) code | IP2X | IP40 |
| Mechanical durability (cycles) | 10000000 | 40000 |
| Operating temperature (T-T) | -40 - 60 °C | -25 - 70 °C |
| Storage temperature (T-T) | -60 - 80 °C | -50 - 85 °C |
| Maximum operating altitude | 3000 m | 5000 m |
| Operating vibration | 6 G | - |
| Operating shock | 15 G | - |
| Certification | RINA CSA BV RMRoS LROS (Lloyds register of shipping) DNV ABS UL CB UKCA | - |
| Nominal input voltage | - | 690 V |
| AC typical input current | - | 2 mA |
| Pollution degree | - | 3 |
| Fire-resistance | - | 960 °C |
| IK code | - | IK07 |
| Electrical durability (cycles) | - | 40000 |
Weight & dimensions
Weight & dimensions
| Width | 163.5 mm | 81 mm |
|---|---|---|
| Depth | 171 mm | 165 mm |
| Height | 170 mm | 155 mm |
| Weight | 3.83 kg | 1.6 kg |
| Package depth | 240 mm | 106 mm |
| Package width | 196 mm | 220 mm |
| Package height | 220 mm | 212 mm |
| Package weight | - | 1.88 kg |
Logistics data
Logistics data
| Country of origin | Czech Republic | - |
|---|
Technical details
Technical details
| Compliance certificates | REACH, RoHS | - |
|---|---|---|
| Warranty period | - | 1.5 year(s) |
