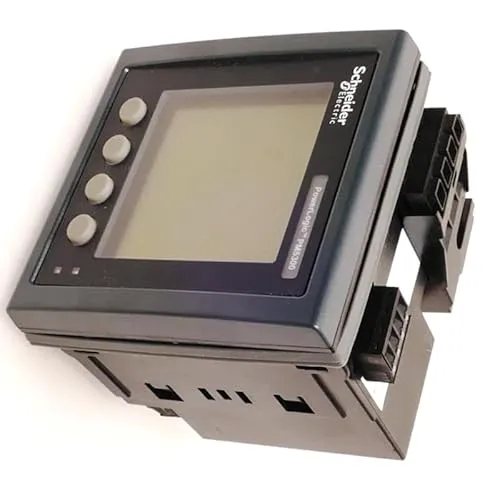

Schneider Electric METSEPM5340 PowerLogic Energy Meter
VS

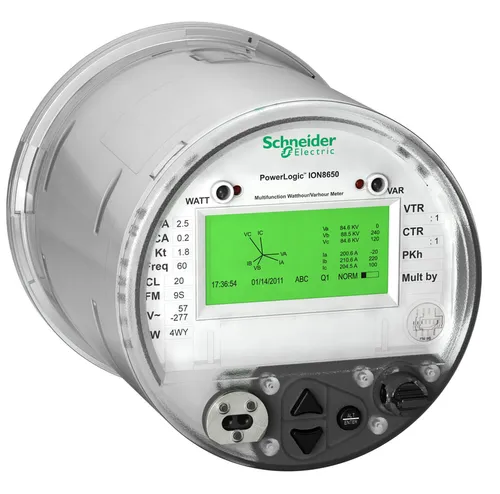

Schneider Electric ION8650C Metering Module
Feature Comparison
Features
Features
| Measuring functions | Power current, Power factor, Power frequency, Voltage | Power output |
|---|---|---|
| Flash memory (microcontroller) | 256 KB | - |
| Display type | LCD | - |
| Application | Domestic | - |
| Mounting type | Flush-mounted | - |
| Shape | Square | - |
| Product colour | Black | - |
| Number of phases | 3 | - |
| Connector(s) | Voltage circuit screw terminal block4 Control circuit screw terminal block2 Current transformer screw terminal block6 Input/output circuit screw terminal block6 Relay output screw terminal block4 Ethernet network RJ45 connector | Full Comm |
| Supported protocols | Modbus TCP/IP 10/100 Mbit/s 2500 V BACnet IP | - |
| Certification | CE IEC 61010-1 CULus UL 61010-1 | - |
| Units of measurement | - | kWh |
| Type | - | Electronic |
| International Protection (IP) code | - | IP50 |
Power
Power
| Power source type | AC | - |
|---|---|---|
| Maximum current | 9 A | - |
| Input voltage | 90 - 450 V | - |
| Rated current | 5 A | - |
| AC input frequency | 45 - 65 Hz | 60 Hz |
Operational conditions
Operational conditions
| Operating temperature (T-T) | -25 - 70 °C | -40 - 85 °C |
|---|---|---|
| Storage temperature (T-T) | -40 - 85 °C | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% | 5 - 95% |
| Operating altitude | 0 - 3000 m | 0 - 3000 m |
Weight & dimensions
Weight & dimensions
| Width | 96 mm | 163 mm |
|---|---|---|
| Depth | 72 mm | 228 mm |
| Height | 96 mm | 285 mm |
| Weight | 430 g | 7 kg |
| Package weight | 550 g | 7 kg |
| Package depth | 107 mm | 290 mm |
| Package width | 124 mm | 410 mm |
| Package height | 120 mm | 290 mm |
Logistics data
Logistics data
| Warranty period | - | 1.5 year(s) |
|---|
