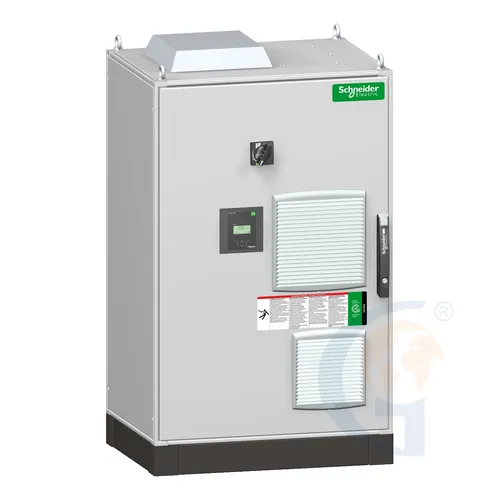

Schneider Electric VarSet Automatic Capacitor Bank with Detuned Reactors
VS
Schneider Electric VarSet Automatic Capacitor Bank with Detuned Reactors
Feature Comparison
Features
Features
| Product colour | Grey | Grey |
|---|---|---|
| International Protection (IP) code | IP31 | IP31 |
| IK code | IK10 | IK10 |
| Number of poles | 3P | 3P |
| Mounting location | Indoor | Indoor |
| Location of connection | Bottom | Bottom |
| Operating mode | Automatic | Automatic |
Operational conditions
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C | -5 - 45 °C |
|---|---|---|
| Operating relative humidity (H-H) | 0 - 95% | 0 - 95% |
Power
Power
| Input frequency | 50 Hz | 50 Hz |
|---|---|---|
| Input voltage | 400 V | 400 V |
| Rated insulation voltage | 690 V | 690 V |
| Rated impulse voltage | 8 kV | 8 kV |
| Reactive power rating | 75 kvar | 125 kvar |
Weight & dimensions
Weight & dimensions
| Width | 800 mm | 800 mm |
|---|---|---|
| Depth | 600 mm | 600 mm |
| Height | 1400 mm | 1400 mm |
Packaging data
Packaging data
| Package width | 1500 mm | 1500 mm |
|---|---|---|
| Package depth | 1200 mm | 1200 mm |
| Package height | 800 mm | 800 mm |
| Package weight | 322 kg | 312 kg |
