Compare Types of Internal Hard Drives

20 comparisons are ready for you on this page

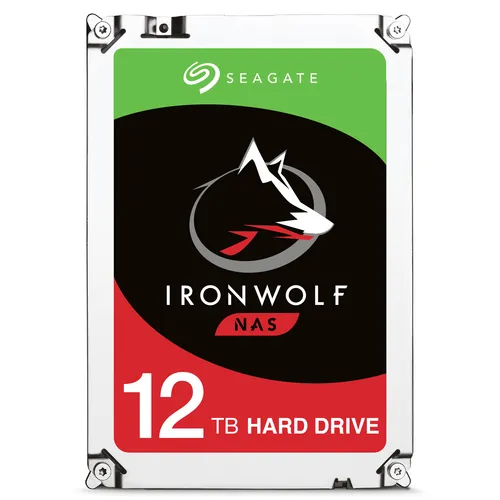

Compare CoreParts IB500001I362 internal hard drive with Seagate IronWolf ST12000VN0007 Internal Hard Drive

Feature	CoreParts IB500001I362 internal hard drive	Seagate IronWolf ST12000VN0007 Internal Hard Drive
HDD capacity	500 GB	12 TB
HDD speed	5400 RPM	7200 RPM
Interface	Serial ATA	Serial ATA III
Type	HDD	HDD
Component for	Laptop	NAS
Hot-swap	No	No
Width	120 mm	101.8 mm
Height	100 mm	26.1 mm
Depth	40 mm	147 mm
Weight	150 g	705 g
Package width	120 mm	-
Package depth	40 mm	-
Package weight	150 g	-
Package height	100 mm	-
Storage drive buffer size	-	256 MB
HDD size	-	3.5"
HDD interface transfer rate	-	6 Gbit/s
HDD sustained transfer rate	-	210 MiB/s
Start/stop cycles	-	600000
Mean time between failures (MTBF)	-	1000000 h
Power consumption (typical)	-	7.8 W
Power consumption (standby)	-	0.8 W
Power consumption (idle)	-	5 W
Operating voltage	-	5 / 12 V
Start-up current	-	1.8 A
Operating temperature (T-T)	-	5 - 70 °C
Storage temperature (T-T)	-	-40 - 70 °C
Operating shock	-	70 G
Non-operating shock	-	250 G
Storage drive adapter included	-	No
Quantity per pack	-	1 pc(s)
Master (outer) cases per pallet	-	40 pc(s)
Layers per pallet	-	8 pc(s)
Products per pallet	-	800 pc(s)

View Comparison Details

Compare DELL 400-BRCT Internal Hard Drive with Seagate Enterprise Exos 5E8 internal hard drive

Dell VS Seagate

Feature	DELL 400-BRCT Internal Hard Drive	Seagate Enterprise Exos 5E8 internal hard drive
HDD capacity	2 TB	8 TB
HDD speed	7200 RPM	-
HDD size	3.5"	3.5"
Interface	Serial ATA III	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	PC
HDD interface transfer rate	6 Gbit/s	6 Gbit/s
Bytes per sector	512n	512
Storage drive buffer size	-	256 MB
HDD sustained transfer rate	-	190 MiB/s
HDD number of heads	-	8
HDD number of cylinders	-	4
Start/stop cycles	-	30000
Mean time between failures (MTBF)	-	800000 h
Power consumption (typical)	-	5.3 W
Power consumption (standby)	-	1 W
Power consumption (idle)	-	3.7 W
Operating voltage	-	5 / 12 V
Start-up current	-	2 A
Operating temperature (T-T)	-	0 - 60 °C
Storage temperature (T-T)	-	-40 - 70 °C
Width	-	101.6 mm
Height	-	26.1 mm
Depth	-	147 mm
Weight	-	605 g
Quantity per pack	-	1 pc(s)
Compliance certificates	-	RoHS

View Comparison Details

Compare Lenovo 00MM685 Internal Hard Drive with Lenovo 00MM700 Internal Hard Drive

Lenovo VS Lenovo

Feature	Lenovo 00MM685 Internal Hard Drive	Lenovo 00MM700 Internal Hard Drive
HDD capacity	300 GB	600 GB
HDD speed	15000 RPM	10000 RPM
HDD size	2.5"	2.5"
Interface	SAS	SAS
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Operating voltage	5 V	5 V
Quantity per pack	1 pc(s)	1 pc(s)
Harmonized System (HS) code	-	84717050

View Comparison Details

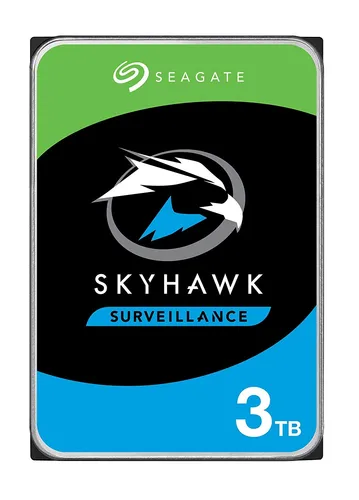

Compare Lenovo 00NC565 internal hard drive with Seagate ST3000VX009 Internal Hard Drive

Lenovo VS Seagate

Feature	Lenovo 00NC565 internal hard drive	Seagate ST3000VX009 Internal Hard Drive
HDD capacity	600 GB	3 TB
HDD speed	10000 RPM	5900 RPM
HDD size	2.5"	3.5"
Interface	SAS	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	PC
HDD interface transfer rate	6 Gbit/s	6 Gbit/s
Operating voltage	5 V	5 / 12 V
Quantity per pack	1 pc(s)	1 pc(s)
HDD sustained transfer rate	-	185 MiB/s
Mean time between failures (MTBF)	-	1000000 h
Power consumption (typical)	-	3.5 W
Power consumption (standby)	-	0.25 W
Power consumption (off)	-	0.25 W
Start-up current	-	1.8 A
Operating temperature (T-T)	-	0 - 70 °C
Storage temperature (T-T)	-	-40 - 70 °C
Operating relative humidity (H-H)	-	5 - 90%
Storage relative humidity (H-H)	-	5 - 95%
Non-operating altitude	-	-304.8 - 12192 m
Width	-	101.8 mm
Height	-	20.2 mm
Depth	-	147 mm
Weight	-	490 g
Harmonized System (HS) code	-	84717050

View Comparison Details

Compare Lenovo 00MM685 Internal Hard Drive with Seagate ST22000NM001E Internal Hard Drive

Lenovo VS Seagate

Feature	Lenovo 00MM685 Internal Hard Drive	Seagate ST22000NM001E Internal Hard Drive
HDD capacity	300 GB	22 TB
HDD speed	15000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	Serial ATA
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Operating voltage	5 V	-
Quantity per pack	1 pc(s)	-
Storage drive buffer size	-	512 MB
Average latency	-	4.16 ms
Power consumption (idle)	-	5.74 W
Operating temperature (T-T)	-	5 - 60 °C
Width	-	101.8 mm
Height	-	26.1 mm
Depth	-	147 mm
Weight	-	680 g
Warranty period	-	5 year(s)

View Comparison Details

Compare DELL 400-ATJL Internal Hard Drive with DELL 400-ATKV Internal Hard Drive

Dell VS Dell

Feature	DELL 400-ATJL Internal Hard Drive	DELL 400-ATKV Internal Hard Drive
HDD capacity	1.2 TB	8 TB
HDD speed	10000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	Yes	Yes
HDD interface transfer rate	12 Gbit/s	6 Gbit/s
Bytes per sector	512n	-
Operating voltage	5 V	5 / 12 V
Storage drive adapter included	No	No
Harmonized System (HS) code	84717050	84717050
Compatible products	-	Dell EMC PowerEdge C6420 (3.5"), R640 (3.5"), R740 (3.5"), R740xd (3.5")

View Comparison Details

Compare Fujitsu S26361-F5538-L560 internal hard drive with Lenovo 7XB7A00033 Internal Hard Drive

Fujitsu VS Lenovo

Feature	Fujitsu S26361-F5538-L560 internal hard drive	Lenovo 7XB7A00033 Internal Hard Drive
HDD capacity	600 GB	1.2 TB
HDD speed	15000 RPM	10000 RPM
HDD size	2.5"	2.5"
Interface	SAS	SAS
Type	HDD	HDD
Hot-swap	Yes	Yes
HDD interface transfer rate	6 Gbit/s	12 Gbit/s
Operating voltage	5 V	5 V
Component for	-	Server/workstation
Quantity per pack	-	1 pc(s)
Harmonized System (HS) code	-	84717050

View Comparison Details

Compare Lenovo 7XB7A00057 internal hard drive with Seagate IronWolf Pro ST22000NT001 Internal Hard Drive

Lenovo VS Seagate

Feature	Lenovo 7XB7A00057 internal hard drive	Seagate IronWolf Pro ST22000NT001 Internal Hard Drive
HDD capacity	4 TB	22 TB
HDD speed	7200 RPM	7200 RPM
HDD size	3.5"	3.5"
Interface	Serial ATA III	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
HDD interface transfer rate	6 Gbit/s	6 Gbit/s
Operating voltage	5 / 12 V	5 / 12 V
Harmonized System (HS) code	84717050	-
Storage drive buffer size	-	512 MB
HDD sustained transfer rate	-	285 MiB/s
Uncorrectable Bit Error Rate (UBER)	-	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	-	Yes
Noise level (idle)	-	20 dB
Mean time between failures (MTBF)	-	2500000 h
Power consumption (typical)	-	7.9 W
Power consumption (standby)	-	1.2 W
Power consumption (idle)	-	6 W
Start-up current	-	2 A
Operating temperature (T-T)	-	0 - 65 °C
Storage temperature (T-T)	-	-40 - 70 °C
Non-operating vibration	-	2.27 G
Operating shock	-	40 G
Non-operating shock	-	200 G
Width	-	101.8 mm
Height	-	26.1 mm
Depth	-	147 mm
Weight	-	690 g
Quantity per pack	-	1 pc(s)
Master (outer) cases per pallet	-	20 pc(s)

View Comparison Details

Compare Seagate Barracuda 6TB Internal Hard Drive with Seagate Enterprise Exos 5E8 internal hard drive

Seagate VS Seagate

Feature	Seagate Barracuda 6TB Internal Hard Drive	Seagate Enterprise Exos 5E8 internal hard drive
HDD capacity	6 TB	8 TB
HDD speed	5400 RPM	-
Storage drive buffer size	256 MB	256 MB
HDD size	3.5"	3.5"
Interface	Serial ATA III	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	PC
Bytes per sector	4096	512
Operating voltage	5 / 12 V	5 / 12 V
Operating temperature (T-T)	0 - 60 °C	0 - 60 °C
Storage drive adapter included	No	-
Width	101.6 mm	101.6 mm
Height	26.1 mm	26.1 mm
Depth	147 mm	147 mm
Weight	610 g	605 g
Harmonized System (HS) code	84717050	-
HDD interface transfer rate	-	6 Gbit/s
HDD sustained transfer rate	-	190 MiB/s
HDD number of heads	-	8
HDD number of cylinders	-	4
Start/stop cycles	-	30000
Mean time between failures (MTBF)	-	800000 h
Power consumption (typical)	-	5.3 W
Power consumption (standby)	-	1 W
Power consumption (idle)	-	3.7 W
Start-up current	-	2 A
Storage temperature (T-T)	-	-40 - 70 °C
Quantity per pack	-	1 pc(s)
Compliance certificates	-	RoHS

View Comparison Details

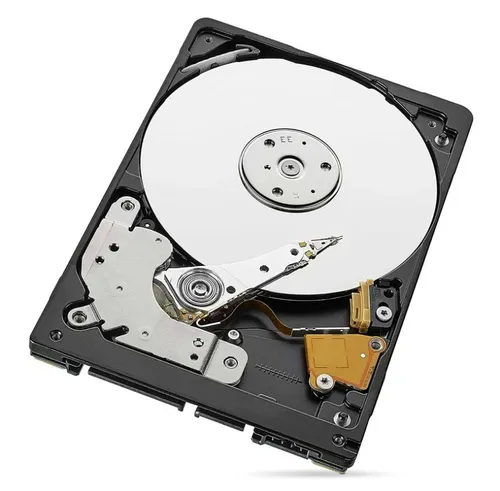

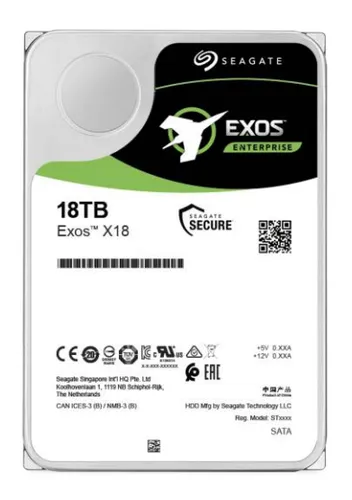

Compare CoreParts SA300003I406-RFB Internal Hard Drive with Seagate Enterprise ST18000NM004J internal hard drive

CoreParts VS Seagate

Feature	CoreParts SA300003I406-RFB Internal Hard Drive	Seagate Enterprise ST18000NM004J internal hard drive
HDD capacity	300 GB	18 TB
HDD speed	10000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	SAS
Type	HDD	HDD
Component for	Server/workstation	Disk array
Hot-swap	No	Yes
Width	120 mm	101.8 mm
Height	80 mm	26.1 mm
Depth	30 mm	147 mm
Weight	250 g	670 g
Package width	120 mm	-
Package depth	30 mm	-
Package weight	300 g	-
Package height	80 mm	-
Storage drive buffer size	-	256 MB
HDD interface transfer rate	-	12 Gbit/s
HDD sustained transfer rate	-	258 MiB/s
HDD average transfer rate	-	270 MB/s
Average latency	-	4.16 ms
Rotational Vibration (RV) sensors	-	Yes
Mean time between failures (MTBF)	-	2500000 h
Power consumption (read)	-	9.9 W
Power consumption (write)	-	7 W
Power consumption (idle)	-	5.8 W
Operating voltage	-	5 / 12 V
Operating temperature (T-T)	-	5 - 60 °C
Non-operating vibration	-	2.27 G
Operating shock	-	50 G
Non-operating shock	-	200 G
Harmonized System (HS) code	-	84717050

View Comparison Details

Compare Lenovo 7XB7A00068 Internal Hard Drive with Seagate Barracuda ST8000DM004 Internal Hard Drive

Lenovo VS Seagate

Feature	Lenovo 7XB7A00068 Internal Hard Drive	Seagate Barracuda ST8000DM004 Internal Hard Drive
HDD capacity	12 TB	8 TB
HDD speed	7200 RPM	5400 RPM
HDD size	3.5"	3.5"
Interface	Serial ATA III	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	Yes	-
HDD interface transfer rate	6 Gbit/s	-
Operating voltage	5 / 12 V	5 / 12 V
Harmonized System (HS) code	84717050	84717050
Storage drive buffer size	-	256 MB
HDD sustained transfer rate	-	220 MiB/s
Power consumption (typical)	-	6.8 W
Power consumption (standby)	-	0.8 W
Power consumption (PowerSave)	-	0.8 W
Power consumption (idle)	-	4.5 W
Start-up current	-	1.8 A
Operating temperature (T-T)	-	0 - 60 °C
Storage temperature (T-T)	-	-40 - 70 °C
Width	-	101.8 mm
Height	-	26.1 mm
Depth	-	147 mm
Weight	-	630 g

View Comparison Details

Compare DELL 400-ATJR Internal Hard Drive with Seagate ST22000NM001E Internal Hard Drive

Dell VS Seagate

Feature	DELL 400-ATJR Internal Hard Drive	Seagate ST22000NM001E Internal Hard Drive
HDD capacity	1.8 TB	22 TB
HDD speed	10000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	Serial ATA
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	Yes	-
HDD interface transfer rate	12 Gbit/s	-
Operating voltage	5 V	-
Storage drive adapter included	Yes	-
Storage drive buffer size	-	512 MB
Average latency	-	4.16 ms
Power consumption (idle)	-	5.74 W
Operating temperature (T-T)	-	5 - 60 °C
Width	-	101.8 mm
Height	-	26.1 mm
Depth	-	147 mm
Weight	-	680 g
Warranty period	-	5 year(s)

View Comparison Details

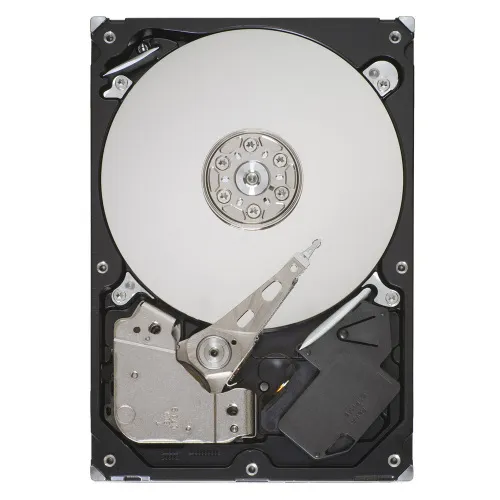

Compare Lenovo 7XB7A00066 Internal Hard Drive with Lenovo 7XB7A00068 Internal Hard Drive

Lenovo VS Lenovo

Feature	Lenovo 7XB7A00066 Internal Hard Drive	Lenovo 7XB7A00068 Internal Hard Drive
HDD capacity	8 TB	12 TB
HDD speed	7200 RPM	7200 RPM
HDD size	3.5"	3.5"
Interface	SAS	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	Yes	Yes
HDD interface transfer rate	12 Gbit/s	6 Gbit/s
Operating voltage	5 / 12 V	5 / 12 V
Harmonized System (HS) code	84717050	84717050

View Comparison Details

Compare CoreParts IB320002I131X internal hard drive with Lenovo 7XB7A00066 Internal Hard Drive

CoreParts VS Lenovo

Feature	CoreParts IB320002I131X internal hard drive	Lenovo 7XB7A00066 Internal Hard Drive
HDD capacity	320 GB	8 TB
HDD speed	7200 RPM	7200 RPM
Interface	Serial ATA	SAS
Type	HDD	HDD
Width	80 mm	-
Height	7 mm	-
Depth	100 mm	-
Weight	100 g	-
Quantity per pack	1 pc(s)	-
Package width	80 mm	-
Package depth	100 mm	-
Package weight	200 g	-
Package height	7 mm	-
Compatible products	IBM/Lenovo ThinkPad	-
HDD size	-	3.5"
Component for	-	Server/workstation
Hot-swap	-	Yes
HDD interface transfer rate	-	12 Gbit/s
Operating voltage	-	5 / 12 V
Harmonized System (HS) code	-	84717050

View Comparison Details

Compare DELL 400-ATJJ Internal Hard Drive with Lenovo 4XB0X87803 internal hard drive

Dell VS Lenovo

Feature	DELL 400-ATJJ Internal Hard Drive	Lenovo 4XB0X87803 internal hard drive
HDD capacity	1 TB	10 TB
HDD speed	7200 RPM	7200 RPM
HDD size	3.5"	3.5"
Interface	Serial ATA III	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	PC
Hot-swap	Yes	-
HDD interface transfer rate	6 Gbit/s	6 Gbit/s
Bytes per sector	512n	-
Operating voltage	5 / 12 V	-
Storage drive adapter included	No	-
Harmonized System (HS) code	84717050	84717050
Compatible products	Dell EMC PowerEdge C6420 (3.5"), R640 (3.5"), R740 (3.5"), R740xd (3.5")	-
Width	-	147 mm
Height	-	26.1 mm
Depth	-	101.8 mm
Weight	-	690 g
Quantity per pack	-	1 pc(s)
Package width	-	252 mm
Package depth	-	179 mm
Package weight	-	1 kg
Package height	-	92 mm
Package type	-	Box
Certification	-	UL.CE,FCC,ICES,RCM,Morocco,KC,BSMI,RoHS

View Comparison Details

Compare Lenovo 00MM695 Internal Hard Drive with Lenovo 7XB7A00066 Internal Hard Drive

Lenovo VS Lenovo

Feature	Lenovo 00MM695 Internal Hard Drive	Lenovo 7XB7A00066 Internal Hard Drive
HDD capacity	900 GB	8 TB
HDD speed	10000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	SAS
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Operating voltage	5 V	5 / 12 V
Quantity per pack	1 pc(s)	-
Hot-swap	-	Yes
HDD interface transfer rate	-	12 Gbit/s
Harmonized System (HS) code	-	84717050

View Comparison Details

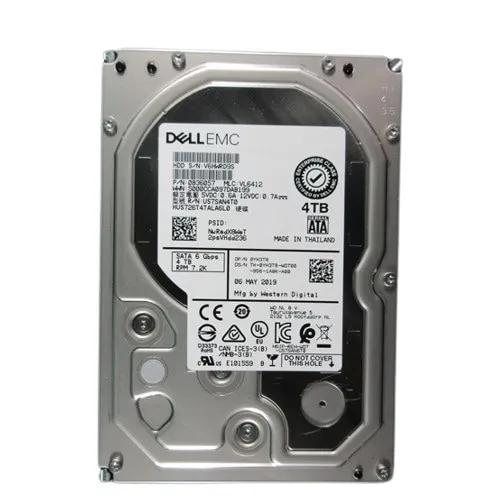

Compare CoreParts SA300003I406-RFB Internal Hard Drive with DELL 400-BRCS Internal Hard Drive

CoreParts VS Dell

Feature	CoreParts SA300003I406-RFB Internal Hard Drive	DELL 400-BRCS Internal Hard Drive
HDD capacity	300 GB	4 TB
HDD speed	10000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	Serial ATA III
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	No	-
Width	120 mm	-
Height	80 mm	-
Depth	30 mm	-
Weight	250 g	-
Package width	120 mm	-
Package depth	30 mm	-
Package weight	300 g	-
Package height	80 mm	-
HDD interface transfer rate	-	6 Gbit/s
Bytes per sector	-	512n

View Comparison Details

Compare CoreParts SA300003I406-RFB Internal Hard Drive with Lenovo 7XB7A00033 Internal Hard Drive

CoreParts VS Lenovo

Feature	CoreParts SA300003I406-RFB Internal Hard Drive	Lenovo 7XB7A00033 Internal Hard Drive
HDD capacity	300 GB	1.2 TB
HDD speed	10000 RPM	10000 RPM
HDD size	2.5"	2.5"
Interface	SAS	SAS
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	No	Yes
Width	120 mm	-
Height	80 mm	-
Depth	30 mm	-
Weight	250 g	-
Package width	120 mm	-
Package depth	30 mm	-
Package weight	300 g	-
Package height	80 mm	-
HDD interface transfer rate	-	12 Gbit/s
Operating voltage	-	5 V
Quantity per pack	-	1 pc(s)
Harmonized System (HS) code	-	84717050

View Comparison Details

Compare DELL 400-ATJM Internal Hard Drive with Lenovo 7XB7A00069 Internal Hard Drive

Dell VS Lenovo

Feature	DELL 400-ATJM Internal Hard Drive	Lenovo 7XB7A00069 Internal Hard Drive
HDD capacity	1.2 TB	2.4 TB
HDD speed	10000 RPM	10000 RPM
HDD size	2.5"	2.5"
Interface	SAS	SAS
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	Yes	Yes
HDD interface transfer rate	12 Gbit/s	12 Gbit/s
Bytes per sector	512n	512
Operating voltage	5 V	5 V
Storage drive adapter included	Yes	-
Storage drive adapter type	2.5" - 3.5"	-
Harmonized System (HS) code	84717050	84717050
Compatible products	-	Lenovo ThinkSystem SR530 Lenovo ThinkSystem SR860 Lenovo ThinkSystem SR630 Lenovo ThinkSystem SR650 Lenovo ThinkSystem SD530 Lenovo ThinkSystem SR570 Lenovo ThinkSystem SN550 Lenovo ThinkSystem SR850 Lenovo ThinkSystem SR550 Lenovo ThinkSystem ST550 Lenovo ThinkSystem SR590 Lenovo ThinkSystem SN850

View Comparison Details

Compare CoreParts SA300003I406-RFB Internal Hard Drive with Lenovo 7XB7A00067 Internal Hard Drive

CoreParts VS Lenovo

Feature	CoreParts SA300003I406-RFB Internal Hard Drive	Lenovo 7XB7A00067 Internal Hard Drive
HDD capacity	300 GB	12 TB
HDD speed	10000 RPM	7200 RPM
HDD size	2.5"	3.5"
Interface	SAS	SAS
Type	HDD	HDD
Component for	Server/workstation	Server/workstation
Hot-swap	No	Yes
Width	120 mm	-
Height	80 mm	-
Depth	30 mm	-
Weight	250 g	-
Package width	120 mm	-
Package depth	30 mm	-
Package weight	300 g	-
Package height	80 mm	-
HDD interface transfer rate	-	12 Gbit/s
Operating voltage	-	5 / 12 V
Harmonized System (HS) code	-	84717050

View Comparison Details
