Lenovo ThinkServer RAID 700 9260-8i Controller
VS

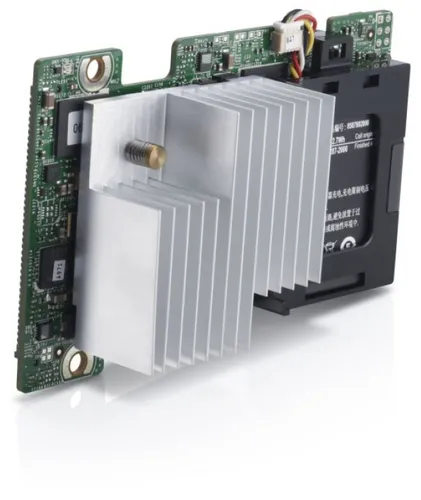

Dell PERC H310 RAID Controller PCI Express x8 2.0 6 Gbit/s
Feature Comparison
Ports & interfaces
Ports & interfaces
| Supported storage drive interfaces | SAS, Serial ATA | SAS, Serial ATA |
|---|---|---|
| Host interface | PCI Express x8 | PCI Express x8 |
| Internal SATA ports quantity | 8 | - |
| PCI Express slots version | - | 2.0 |
| Internal mini-SAS ports | - | 2 |
Performance
Performance
| RAID levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 10, 50 |
|---|---|---|
| RAID Level Migration | Yes | - |
| Data transfer rate | 6 Gbit/s | 6 Gbit/s |
| Internal memory | 512 MB | - |
| Internal memory type | DDR2 | - |
| Memory clock speed | 800 MHz | - |
| Chipset | LSI SAS2108 | - |
| Number of devices supported | 32 | - |
| Online Capacity Expansion | Yes | - |
| Hot-swap | Yes | - |
| Certification | UL, CE EMC, C-tick, GS, cUL, CB, FCC | - |
| SSD support | - | Yes |
| Sustained data transfer rate (native) | - | 600 MB/s |
| Compatible products | - | PowerEdge M520 PowerEdge M620 |
Weight & dimensions
Weight & dimensions
| Width | 18.7 mm | 167.6 mm |
|---|---|---|
| Depth | 167.7 mm | 64.4 mm |
| Height | 64.4 mm | - |
| Weight | 105 g | - |
Other features
Other features
| PCI Card form factor | Half-height (low-profile) | Full-height (low-profile) |
|---|
Processor
Processor
| Built-in processor | - | LSISAS2008 |
|---|
Power
Power
| Voltage | - | +12 V |
|---|
Operational conditions
Operational conditions
| Operating temperature (T-T) | - | 0 - 65 °C |
|---|---|---|
| Storage temperature (T-T) | - | -45 - 105 °C |
| Operating relative humidity (H-H) | - | 5 - 90% |
| Storage relative humidity (H-H) | - | 5 - 90% |
