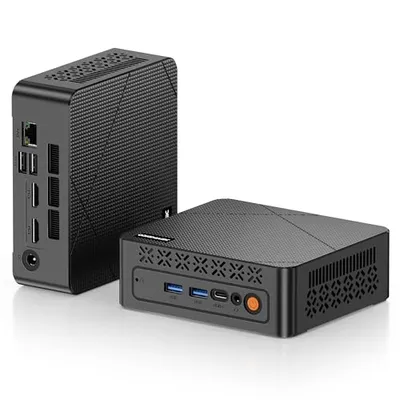

Origimagic C3 Mini PC i3-5005U 8GB RAM 512GB SSD
Specifications
General specifications
General specifications
| Equivalent Name |
origimagic C3 Mini PC
|
|---|---|
| Product Classification |
Mini PC
|
| Device Design and Dimensions |
Compact, 125 x 125 x 45mm
|
Central Processor (CPU)
Central Processor (CPU)
| Processor Category and Type |
Intel Core i3 Low Power
|
|---|---|
| CPU Model |
i3-5005U
|
| Processor Manufacturer |
Intel
|
| Processor Codename (Intel) |
Broadwell
|
| Number of Cores and Threads |
2 Cores, 4 Threads
|
| Minimum Processor Frequency |
2.0
GHz
86% better than others
|
| Maximum Processor Frequency |
2.0
GHz
83% better than others
|
| Processor Details |
15W TDP, Hyper-Threading Technology
|
| Integrated GPU |
Intel HD Graphics 5500
|
Graphics Processor (GPU)
Graphics Processor (GPU)
| Display Support Capacity |
Dual Display
|
|---|---|
| Maximum Display Resolution |
4K@30Hz (via HDMI)
|
Storage memory
Storage memory
| RAM Memory |
8
GB
62% better than others
|
|---|---|
| RAM Generation |
DDR3L
|
| RAM Upgrade Support |
Yes, up to 16GB
|
| Internal Storage Type |
M.2 SATA SSD + 2.5" SATA HDD Bay
|
| Memory Upgrade Support |
Yes, M.2 SSD and 2.5" SATA HDD
|
| Maximum Supported RAM Capacity |
16
GB
86% better than others
|
| SSD Capacity |
512
GB
19% better than others
|
| SSD Form Factor |
M.2
|
| Hard Disk Form Factor Size |
2.5-inch
|
| Additional Storage Memory Details |
Includes 2.5" SATA HDD bracket and cable
|
| SSD Type |
SATA
|
Connections
Connections
| M.2 Expansion Slot |
Yes
76% have it
|
|---|---|
| Number of USB Ports |
4 (2x USB 3.2 Type-A, 1x USB-C, 1x USB 2.0)
|
| Number of USB Type-A Ports |
2
|
| USB Type-A Port Specifications |
USB 3.2 Gen 1
|
| Thunderbolt Support |
No
12% do not have it
|
| DisplayPort Port |
No
13% do not have it
|
| Mini DisplayPort Port |
No
11% do not have it
|
| Headphone/Microphone Port |
Yes
78% have it
|
| Type of Headphone/Microphone Jack |
3.5mm Combo Jack
|
| HDMI Output Port |
2
|
| Number of Ethernet Ports |
1
|
| Ethernet Port Details |
Gigabit Ethernet (10/100/1000 Mbps)
|
| Serial Port |
No
24% do not have it
|
| VGA Output Port |
No
6% do not have it
|
| DVI (Digital Visual Interface) Port |
No
35% do not have it
|
| Additional Ports |
1x USB 2.0, DC-in Power Port
|
| Number of Serial Ports |
0
|
| Number of VGA Ports |
0
|
| Number & Type of RAM Slots |
1x SO-DIMM DDR3L
|
| M.2 Slot Performance Details |
Supports SATA interface
|
| Number of USB Type C Ports |
1
|
| WiFi specifications |
Dual-band WiFi (2.4GHz/5GHz)
|
| Bluetooth Support |
Yes
78% have it
|
| WiFi and Bluetooth Connectivity Details |
Integrated WiFi and Bluetooth 5.0
|
| USB-C Port Specifications |
Data Transfer Support
|
Other technical features
Other technical features
| Device Internal Microphone |
No
10% do not have it
|
|---|---|
| Kensington Security Slot |
No
37% do not have it
|
| Remote Control |
No
14% do not have it
|
| Power Adapter |
External 12V/3A (included)
|
| Standards |
FCC, CE
|
| Other Features |
Pre-installed Windows 10 Pro, Office Included
|
Aesthetic features
Aesthetic features
| Size and Dimensions |
125 x 125 x 45 mm
|
|---|---|
| Product Weight |
Approx. 0.5 kg
|
| Color Options |
Black
|
| VESA Standard Support |
No
26% do not have it
|
| Cooling Mechanism |
Active Fan Cooling
|
General features
General features
| Processor series |
Intel Core i3
|
|---|
Processing power
Processing power
| Cache Memory |
3 MB Intel® Smart Cache
|
|---|
Ports
Ports
| HDMI Port Details |
2x HDMI 1.4
|
|---|
Operating system or software platform
Operating system or software platform
| OS Version |
Windows 10 Pro
|
|---|
Graphics Processing Unit (GPU)
Graphics Processing Unit (GPU)
| GPU Manufacturer |
Intel
|
|---|---|
| Additional GPU Details |
Supports DirectX 11.2
|
| Graphics Memory Capacity |
Shared System Memory
|
Additional features and options
Additional features and options
| Box Contents |
Mini PC, Power Adapter, HDMI Cable, SATA Cable, User Manual, Office Software License
|
|---|
General features
General features
| Processor series |
Intel Core I3
|
|---|
Disclaimer: Information on this page may need review. If you notice any discrepancies, please report them
The Origimagic C3 Mini PC features a compact, business-oriented chassis constructed primarily from durable ABS plastic, measuring 125 x 125 x 45mm for minimal desk footprint. Internally, it houses an Intel Core i3-5005U processor on a proprietary motherboard designed for low-power consumption, with onboard cooling optimized for 24/7 operation. The RAM is user-upgradable DDR3L, and it includes a 2.5-inch SATA HDD bay alongside the M.2 SSD slot, facilitating storage expansion.
The C3 Mini PC is powered by the Intel Core i3-5005U dual-core processor, featuring Hyper-Threading technology for 4 threads, operating at a base frequency of 2.0 GHz and a TDP of 15W. It is equipped with 8GB of DDR3L RAM, expandable up to 16GB, and a 512GB SATA SSD for primary storage. Integrated Intel HD Graphics 5500 handles display output, supporting dual HDMI 1.4 connectivity for resolutions up to 4K@30Hz. Connectivity includes Gigabit Ethernet, dual-band WiFi, Bluetooth 5.0, USB 3.2 Type-A, and USB-C ports, ensuring versatile peripheral integration and network access.
Compared to modern Intel Celeron or higher-tier Core i5/i7 processors, the i3-5005U offers foundational performance suitable for essential business tasks, office applications, and web browsing, but will struggle with demanding creative workloads or intensive gaming. Its low power draw and fan cooling make it ideal for dedicated single-purpose applications like digital signage, thin clients, or always-on media servers where sustained, moderate performance is prioritized over peak speed. Users requiring extensive multitasking or high-end graphics should consider more powerful solutions; however, for budget-conscious professionals and small businesses seeking reliable, energy-efficient computing for routine tasks, the C3 presents a cost-effective and stable option.
Pros & Cons
Pros
What we love about this product
- Intel Core i3-5005U processor provides stable performance for essential tasks.
- Expandable RAM and dual storage options (M.2 SSD + 2.5" SATA HDD).
- Compact design with versatile connectivity including dual HDMI and USB-C.
- Optimized for 24/7 operation with low 15W TDP for energy efficiency.
Cons
Points to consider before buying
- Older generation i3 processor limits performance for demanding applications.
- Integrated graphics are not suitable for gaming or heavy visual workloads.
- RAM is DDR3L, which is slower than modern DDR4/DDR5 standards.
