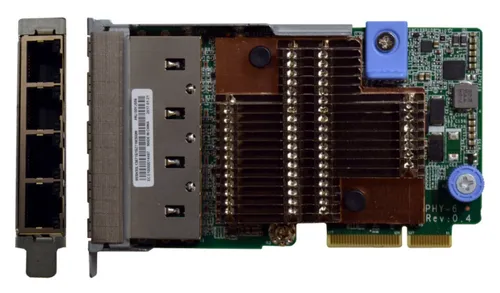

Lenovo 7ZT7A00549 network card
Feature Comparison
Ports & interfaces
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
Network
Network
| Maximum data transfer rate | 10000 Mbit/s |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Security algorithms | SNMP |
| Jumbo frames support | Yes |
| Jumbo frames | 9728 |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
Design
Design
| Product colour | Green |
|---|---|
| Internal | Yes |
| Chipset | Intel® C624 |
| Certification | UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A |
| Compatible products | SR630 SR650 SR850 SR860 SR950 |
System requirements
System requirements
| Linux operating systems supported | Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0, openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2 |
|---|---|
| Other operating systems supported | VMware vSphere ESXi |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016 |
Technical details
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Other features
Other features
| Flow control support | Yes |
|---|---|
| Number of VLANs | 4096 |
| PCI-SIG* SR-IOV Capable | Yes |
| Receive Side Scaling (RSS) | Yes |
