Price Comparison
No stores registered at this time
VS

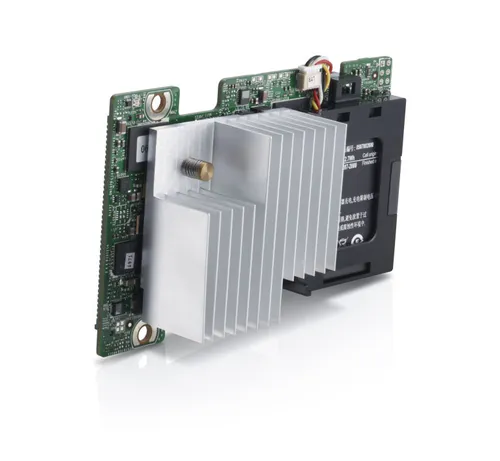

Dell PERC H310 RAID Controller PCI Express x8 2.0 6 Gbit/s
VS
Lenovo ThinkServer RAID 500 II Controller Card
Feature Comparison
Ports & interfaces
Ports & interfaces
| Supported storage drive interfaces | SAS, Serial ATA | SAS |
|---|---|---|
| Host interface | PCI Express x8 | PCI Express x8 |
| PCI Express slots version | 2.0 | 2.0 |
| Internal mini-SAS ports | 2 | - |
Performance
Performance
| RAID levels | 0, 1, 5, 10, 50 | 0, 1, 10 |
|---|---|---|
| Data transfer rate | 6 Gbit/s | - |
| SSD support | Yes | - |
| Sustained data transfer rate (native) | 600 MB/s | - |
| Compatible products | PowerEdge M520 PowerEdge M620 | ThinkServer RD330; RD430; RD530; RD630; TS430 |
| Form factor | - | LP |
| Internal memory | - | 512 MB |
| Channels quantity | - | 8 channels |
| Mean time between failures (MTBF) | - | 2000000 h |
| Certification | - | C-Tick, CB, cUL, FCC, GS, UL |
Processor
Processor
| Built-in processor | LSISAS2008 | - |
|---|
Power
Power
| Voltage | +12 V | - |
|---|
Operational conditions
Operational conditions
| Operating temperature (T-T) | 0 - 65 °C | - |
|---|---|---|
| Storage temperature (T-T) | -45 - 105 °C | - |
| Operating relative humidity (H-H) | 5 - 90% | - |
| Storage relative humidity (H-H) | 5 - 90% | - |
Weight & dimensions
Weight & dimensions
| Width | 167.6 mm | - |
|---|---|---|
| Depth | 64.4 mm | - |
Other features
Other features
| PCI Card form factor | Full-height (low-profile) | - |
|---|---|---|
| Number of products included | - | 1 pc(s) |
System requirements
System requirements
| Windows operating systems supported | - | Yes |
|---|---|---|
| Linux operating systems supported | - | Yes |
