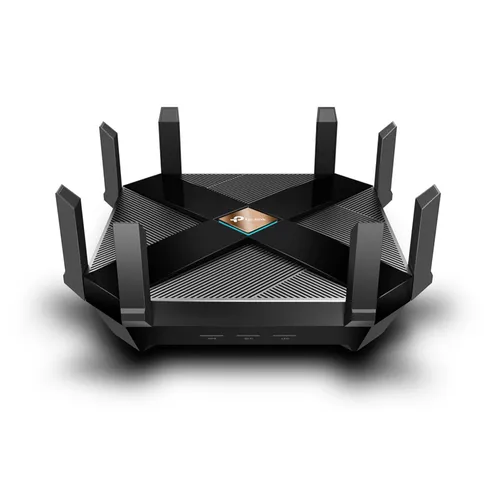

TP-Link Archer AX6000 Dual-Band Wi-Fi 6 Router
Specifications
WAN connection
WAN connection
| Ethernet WAN |
Yes
74% have it
|
|---|---|
| DSL WAN |
No
42% do not have it
|
| SIM card slot |
No
20% do not have it
|
| 3G/4G USB modem compatibility |
No
35% do not have it
|
| WAN connection type |
RJ-45
|
Wireless LAN features
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz)
|
|---|---|
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax)
|
| WLAN data transfer rate (max) |
4804 Mbit/s
|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
|
| WLAN data transfer rate (first band) |
1148 Mbit/s
|
| WLAN data transfer rate (second band) |
4804 Mbit/s
|
Network
Network
| Ethernet LAN |
Yes
67% have it
|
|---|---|
| Ethernet LAN interface type |
Gigabit Ethernet
|
| Ethernet LAN data rates |
10,1000 Mbit/s
|
| Cabling technology |
10/100/1000Base-T(X)
|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
|
| Port forwarding |
Yes
59% have it
|
| Port triggering |
Yes
70% have it
|
| Dynamic DNS (DDNS) |
Yes
90% have it
|
| Number of guest networks (2.4 GHz) |
1
|
| Number of guest networks (5 GHz) |
1
|
| Built-in FTP server |
Yes
78% have it
|
| Media server |
Yes
90% have it
|
Ports & interfaces
Ports & interfaces
| Ethernet LAN (RJ-45) ports |
8
|
|---|---|
| USB port |
Yes
71% have it
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1
|
| DC-in jack |
Yes
91% have it
|
Management features
Management features
| Web-based management |
Yes
75% have it
|
|---|---|
| Quality of Service (QoS) support |
Yes
93% have it
|
| Reset button |
Yes
55% have it
|
| WPS push button |
Yes
74% have it
|
Security
Security
| Security algorithms |
WPA, WPA2, WPA3
|
|---|---|
| Firewall |
Yes
76% have it
|
| Firewall security |
DoS, SPI Firewall, IP and MAC Address Binding
|
| Guest access |
Yes
91% have it
|
| Access Control List (ACL) |
Yes
93% have it
|
| Schedule access |
Yes
76% have it
|
| DoS attack prevention |
Yes
64% have it
|
| Filtering |
Yes
61% have it
|
| URL filtering |
Yes
84% have it
|
| DMZ support |
Yes
89% have it
|
Protocols
Protocols
| DHCP client |
Yes
56% have it
|
|---|---|
| DHCP server |
Yes
65% have it
|
| Universal Plug and Play (UPnP) |
Yes
77% have it
|
| Supported network protocols |
IPv4, IPv6
|
Design
Design
| Product colour |
Black
|
|---|---|
| Wall mountable |
Yes
85% have it
|
| Indication light |
Yes
71% have it
|
| LED indicators |
LAN, Power, Status, USB, WAN, WLAN
|
| On/off switch |
Yes
76% have it
|
| Product type |
Tabletop router
|
Certificates
Certificates
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE
|
|---|
Packaging content
Packaging content
| Cables included |
LAN (RJ-45)
|
|---|---|
| AC adapter included |
Yes
83% have it
|
| Quick installation guide |
Yes
63% have it
|
Sustainability
Sustainability
| Sustainability compliance |
Yes
76% have it
|
|---|
Antenna
Antenna
| Antenna design |
External
|
|---|---|
| Antennas quantity |
8
|
| Detachable antenna(s) |
Yes
82% have it
|
| Transmit power |
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz), FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
|
Features
Features
| Built-in processor |
Yes
78% have it
|
|---|---|
| Processor frequency |
1800
MHz
58% better than others
|
| Processor cores |
4
|
| Internal memory |
1
MB
71% better than others
|
| Flash memory |
128
MB
88% better than others
|
| Firmware upgradeable |
Yes
72% have it
|
Power
Power
| Power source type |
DC
|
|---|---|
| Output voltage |
12
V
43% better than others
|
| Output current |
4
A
72% better than others
|
Operational conditions
Operational conditions
| Operating temperature (T-T) |
0 - 40 °C
|
|---|---|
| Storage temperature (T-T) |
-40 - 70 °C
|
| Operating relative humidity (H-H) |
10 - 90%
|
| Storage relative humidity (H-H) |
5 - 90%
|
System requirements
System requirements
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows XP
|
|---|---|
| Linux operating systems supported |
Yes
58% have it
|
| Mac operating systems supported |
macOS
|
| Mac compatibility |
Yes
81% have it
|
Weight & dimensions
Weight & dimensions
| Width |
261.2
mm
80% better than others
|
|---|---|
| Depth |
261.2
mm
78% better than others
|
| Height |
60.2
mm
45% better than others
|
Packaging data
Packaging data
| Package width |
365
mm
55% better than others
|
|---|---|
| Package depth |
290
mm
62% better than others
|
| Package height |
120
mm
84% better than others
|
| Package weight |
1.82
kg
89% better than others
|
| Number of products included |
1 pc(s)
|
Logistics data
Logistics data
| Harmonized System (HS) code |
85176990
89% better than others
|
|---|
Disclaimer: Information on this page may need review. If you notice any discrepancies, please report them
The TP-Link Archer AX6000 stands as a formidable contender in the high-performance wireless router market, engineered to meet the demands of modern, connected households and demanding professional environments. Leveraging the latest Wi-Fi 6 (802.11ax) standard, this router is designed to deliver significantly faster speeds, improved capacity, and reduced latency compared to its predecessors. Its robust hardware is built to handle numerous devices simultaneously, making it an ideal solution for homes with a growing number of smart devices, extensive streaming needs, and online gaming pursuits. The AX6000 aims to provide a seamless and reliable network experience, ensuring that every connected device performs at its optimal potential.
At its core, the Archer AX6000 boasts a powerful quad-core processor, enabling it to manage complex network traffic with ease and sustain high throughput rates across its dual bands. This translates into a superior user experience, whether you're downloading large files, engaging in 4K/8K video streaming, or participating in latency-sensitive online activities. The integration of Wi-Fi 6 technologies such as OFDMA and MU-MIMO ensures efficient data transmission, allowing multiple devices to communicate with the router simultaneously without significant performance degradation. Furthermore, the router's comprehensive port selection, including multiple Gigabit Ethernet ports and a 2.5 Gbps WAN port, provides ample connectivity options for wired devices and high-speed internet service integration, solidifying its position as a versatile networking hub.
Pros & Cons
Pros
What we love about this product
- Next-Gen Wi-Fi 6 Performance: Supports 802.11ax standard for up to 6000 Mbps (1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz), offering superior speeds and capacity.
- Powerful Processing: Features a 1.8 GHz 64-bit Quad-Core CPU to handle demanding network tasks and ensure smooth operation.
- Extensive Connectivity: Equipped with 8 Gigabit LAN ports for robust wired connections and a 2.5 Gbps WAN port for high-speed internet input.
- Advanced Wi-Fi Technologies: Incorporates OFDMA and MU-MIMO to efficiently manage multiple devices and improve network performance in high-density environments.
- Enhanced Security: Built with WPA3 support for stronger, more secure wireless encryption and TP-Link HomeCare for comprehensive network security.
Cons
Points to consider before buying
- No Integrated Modem: Requires a separate modem for internet service, adding to the overall setup cost and complexity.
- Limited USB Ports: Only two USB ports (one USB 3.0 and one USB 2.0) might be insufficient for extensive network storage or printer sharing needs.
- No Dedicated DFS Channel Support Mentioned: Specific details regarding dynamic frequency selection (DFS) channel support on the 5GHz band are not explicitly detailed in the provided specifications, which could be a factor in crowded Wi-Fi environments.
